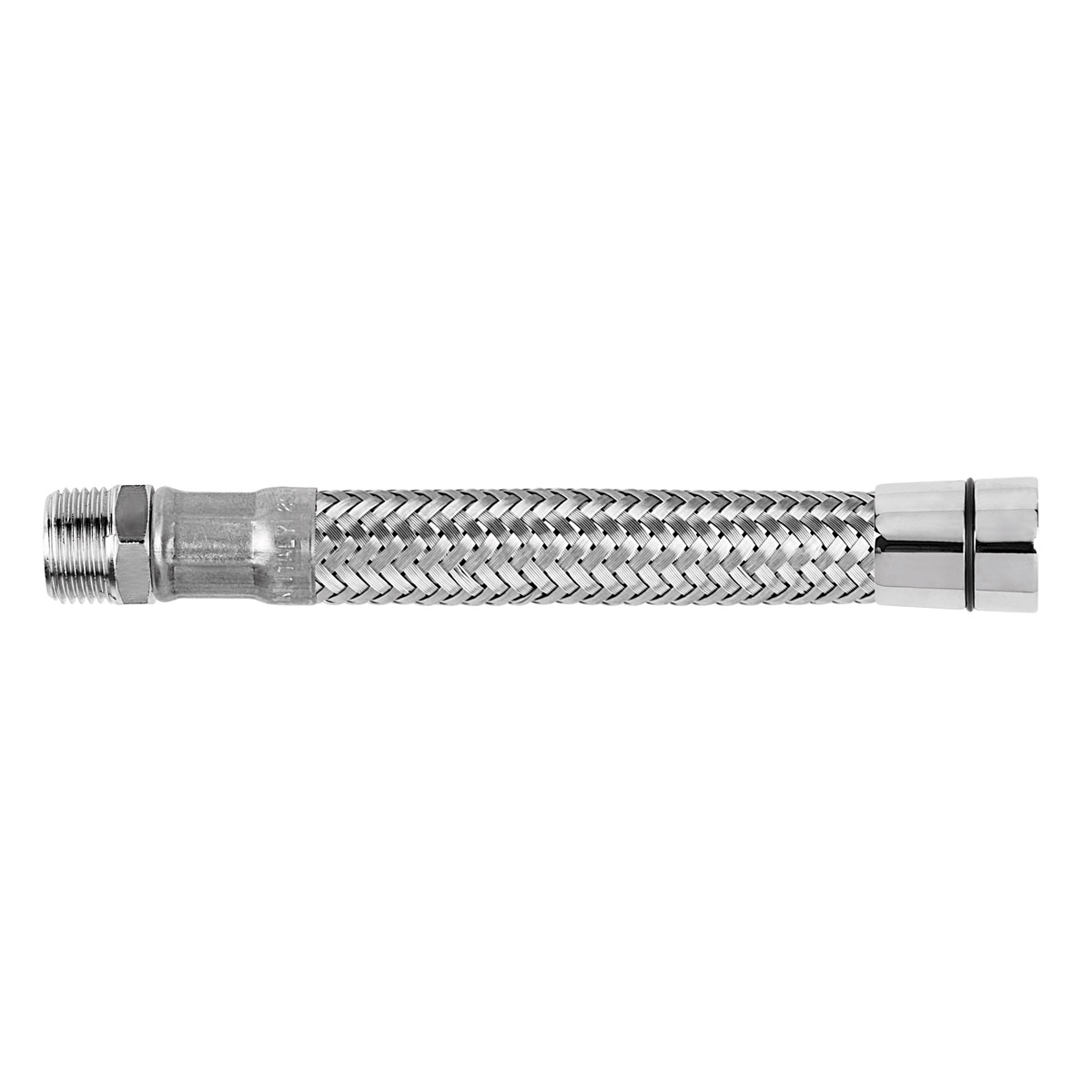

FLEXIBLE HOSES FOR MIXERS

Flexible hoses for hydraulic connections with EPDM undercoating and stainless steel braid, complete with brass connections.
Available with neutral braid or with Italian flag.
Other undercoatings upon request (silicone, pex)



Sizes: DN 6/8
Length: upon request
Connection type available: SHORT MALE / LOGE MALE



BILL OF MATERIALS

lnner Hose: EPDM Rubber
Outside braiding: Stainless Steel
Fittings: CW614n brass
Sleeves: Stainless steel AISI 304



INNER HOSE: DN6 - DN8
TEMPERATURE: -5°C / +90°C
BENDING RADIUS: 25 MM - 30 MM
WORKING PRESSURE: 10 BAR
WATER FLOW: 18 L / MN - 32 L / MN


DN8

PULL-OUT HOSES AND HOSES FOR BATH WITH OUTSIDE Ø12 WITH BRASS FITTINGS AND GASKET ASSEMBLED.
